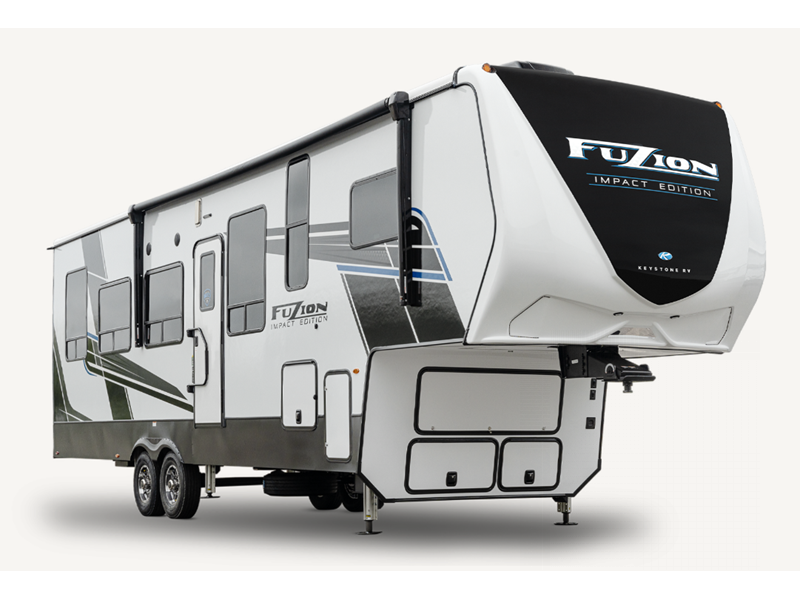

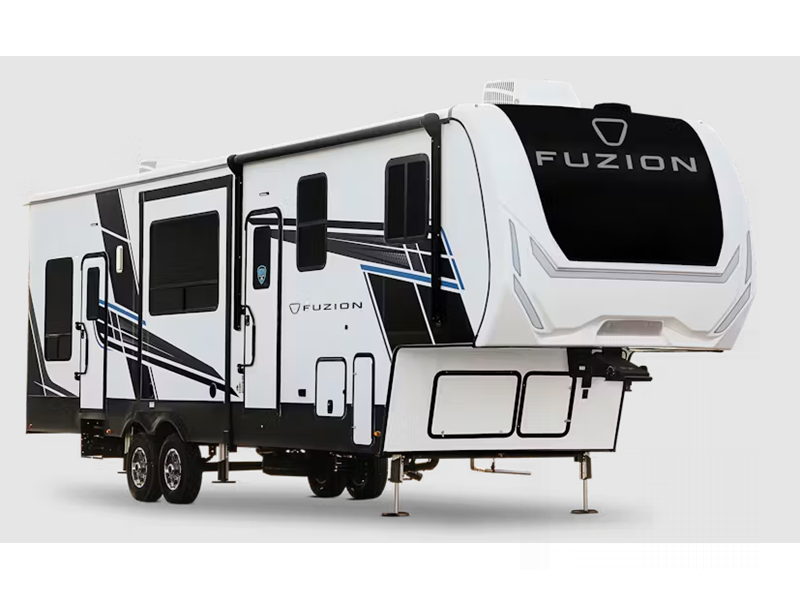

Keystone RV Fuzion Impact Edition Toy Hauler Fifth Wheel RVs For Sale

Previous
Next
1 of 13

The Fuzion Impact Edition toy haulers by Keystone offer a lighter, easy-to-tow travel trailer or fifth wheel that is focused on value and fun. The Fuzion Impact Edition is tougher when you need it, and provides technology that transforms and offers unexpected conveniences.



Each model features a leaf spring suspension system, in-floor heating ducts, and a wide-body construction to fit your favorite toys on board. Inside, you will love night shades, hardwood cabinetry, and full-extension ball bearing drawer guides. And check out the garage with its 8' ramp door, ducted A/C and heating, and additional sleeping space for guests!



Choose a Keystone Fuzion Impact Edition toy hauler travel trailer or toy hauler fifth wheel today for adventures tomorrow!

  • Fuzion Impact Edition 3120

    Fuzion Impact Edition 3120 Floorplan Image

    Take a Virtual Tour

    Keystone Fuzion Impact Edition toy hauler 3120 highlights: Dual Opposing Sofas ... more about Fuzion Impact Edition 3120

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 8
    Slides 1
    Length 35 ft 3 in
    Ext Width 8 ft 4 in
    Ext Height 13 ft 2 in
    Interior Color Charcoal, Stone
    Hitch Weight 2670 lbs
    Dry Weight 11823 lbs
    Cargo Capacity 4847 lbs
    Fresh Water Capacity 188 gals
    Grey Water Capacity 44 gals
    Black Water Capacity 44 gals
    Tire Size ST235/80R16G
    Furnace BTU 35000 btu
    Fuel Capacity 30 gals
    Number Of Bunks 1
    Available Beds Queen
    Refrigerator Type 12V
    Cooktop Burners 3
    Number of Awnings 1
    Garage Size 20 ft
    LP Tank Capacity 30 lbs
    Water Heater Type Girard On Demand
    TV Info LR LED TV
    Awning Info 20' Electric with Adjustable Arms, Auto Dump, LED Lights
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Fuzion Impact Edition 337

    Fuzion Impact Edition 337 Floorplan Image

    Keystone Fuzion Impact Edition toy hauler 337 highlights: Full and Half Bath ... more about Fuzion Impact Edition 337

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 9
    Slides 3
    Length 36 ft 7 in
    Ext Width 8 ft 4 in
    Ext Height 13 ft 3 in
    Interior Color Charcoal, Stone
    Hitch Weight 2700 lbs
    Dry Weight 12795 lbs
    Cargo Capacity 3905 lbs
    Fresh Water Capacity 94 gals
    Grey Water Capacity 88 gals
    Black Water Capacity 74 gals
    Tire Size ST235/80R16G
    Furnace BTU 35000 btu
    Fuel Capacity 30 gals
    Number Of Bunks 1
    Available Beds King
    Refrigerator Type 12V
    Refrigerator Size 16 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight 7000 lbs
    Garage Size 11 ft
    LP Tank Capacity 30 lbs
    Water Heater Type Girard On Demand
    TV Info LR LED TV
    Awning Info 13' Electric with Adjustable Arms, Auto Dump, LED Light Strip
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Shower Type Shower w/Seat
    Electrical Service 50 amp

    Similar Floorplans

  • Fuzion Impact Edition 3423

    Fuzion Impact Edition 3423 Floorplan Image

    Take a Virtual Tour

    Keystone Fuzion Impact Edition toy hauler 3423 highlights: Two Flip-Up Tables ... more about Fuzion Impact Edition 3423

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 7
    Slides 2
    Length 39 ft 10 in
    Ext Width 8 ft 4 in
    Ext Height 13 ft 2 in
    Interior Color Charcoal, Stone
    Hitch Weight 2745 lbs
    Dry Weight 12430 lbs
    Cargo Capacity 4315 lbs
    Fresh Water Capacity 188 gals
    Grey Water Capacity 44 gals
    Black Water Capacity 44 gals
    Tire Size ST235/80R16G
    Furnace BTU 35000 btu
    Fuel Capacity 30 gals
    Number Of Bunks 1
    Available Beds Queen
    Refrigerator Type 12V
    Cooktop Burners 3
    Number of Awnings 1
    Garage Size 23 ft
    LP Tank Capacity 30 lbs
    Water Heater Type Girard On Demand
    TV Info LR LED TV
    Awning Info 20' Electric with Adjustable Arms, Auto Dump, LED Lights
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Fuzion Impact Edition 343

    Fuzion Impact Edition 343 Floorplan Image

    Keystone Fuzion Impact Edition toy hauler 343 highlights: Kitchen Island Three ... more about Fuzion Impact Edition 343

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 9
    Slides 3
    Length 39 ft
    Ext Width 8 ft 4 in
    Ext Height 13 ft 1 in
    Interior Color Charcoal, Stone
    Hitch Weight 2905 lbs
    Dry Weight 12694 lbs
    Cargo Capacity 4206 lbs
    Fresh Water Capacity 94 gals
    Grey Water Capacity 86 gals
    Black Water Capacity 44 gals
    Tire Size ST235/80R16G
    Furnace BTU 35000 btu
    Fuel Capacity 30 gals
    Number Of Bunks 1
    Available Beds King
    Refrigerator Type 12V
    Refrigerator Size 16 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight 7000 lbs
    Garage Size 13 ft
    LP Tank Capacity 30 lbs
    Water Heater Type Girard On Demand
    TV Info LR LED TV
    Awning Info 13' Electric with Adjustable Arms, Auto Dump, LED Lights
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Shower Type Neo-Angled
    Electrical Service 50 amp

    Similar Floorplans

  • Fuzion Impact Edition 359

    Fuzion Impact Edition 359 Floorplan Image

    Keystone Fuzion Impact Edition toy hauler 359 highlights: Bath and a Half Dual ... more about Fuzion Impact Edition 359

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 8
    Slides 2
    Length 39 ft
    Ext Width 8 ft 4 in
    Ext Height 13 ft 1 in
    Interior Color Charcoal, Stone
    Hitch Weight 2880 lbs
    Dry Weight 12915 lbs
    Cargo Capacity 3965 lbs
    Fresh Water Capacity 94 gals
    Grey Water Capacity 88 gals
    Black Water Capacity 88 gals
    Tire Size ST235/80R16G
    Furnace BTU 35000 btu
    Fuel Capacity 30 gals
    Number Of Bunks 1
    Available Beds King
    Refrigerator Type 12V
    Refrigerator Size 16 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight 7000 lbs
    Garage Size 10 ft
    LP Tank Capacity 30 lbs
    Water Heater Type Girard On Demand
    TV Info LR LED TV
    Awning Info 20' Electric with Adjustable Arms, Auto Dump, LED Lights
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Shower Type Neo-Angled
    Electrical Service 50 amp

    Similar Floorplans

  • Fuzion Impact Edition 367

    Fuzion Impact Edition 367 Floorplan Image

    Keystone Fuzion Impact Edition toy hauler 367 highlights: Full and Half Bath ... more about Fuzion Impact Edition 367

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 9
    Slides 3
    Length 40 ft 2 in
    Ext Width 8 ft 4 in
    Ext Height 13 ft 3 in
    Interior Color Charcoal, Stone
    Hitch Weight 2950 lbs
    Dry Weight 13269 lbs
    Cargo Capacity 3681 lbs
    Fresh Water Capacity 94 gals
    Grey Water Capacity 88 gals
    Black Water Capacity 88 gals
    Tire Size ST235/80R16G
    Furnace BTU 35000 btu
    Fuel Capacity 30 gals
    Number Of Bunks 1
    Available Beds King
    Refrigerator Type 12V
    Refrigerator Size 16 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight 7000 lbs
    Garage Size 14 ft
    LP Tank Capacity 30 lbs
    Water Heater Type Girard On Demand
    TV Info LR LED TV
    Awning Info 13' Electric with Adjustable Arms, Auto Dump, LED Light Strip
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Shower Type Shower w/Seat
    Electrical Service 50 amp

    Similar Floorplans

  • Fuzion Impact Edition 415

    Fuzion Impact Edition 415 Floorplan Image

    Keystone Fuzion Impact Edition toy hauler 415 highlights: Triple Axles U-Shaped ... more about Fuzion Impact Edition 415

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 9
    Slides 2
    Length 44 ft
    Ext Width 8 ft 4 in
    Ext Height 13 ft 3 in
    Interior Color Charcoal, Stone
    Hitch Weight 3155 lbs
    Dry Weight 14154 lbs
    Cargo Capacity 4846 lbs
    Fresh Water Capacity 94 gals
    Grey Water Capacity 88 gals
    Black Water Capacity 88 gals
    Tire Size ST235/80R16F
    Furnace BTU 35000 btu
    Fuel Capacity 30 gals
    Number Of Bunks 1
    Available Beds King
    Refrigerator Type 12V
    Refrigerator Size 16 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight 7000 lbs
    Garage Size 15 ft
    LP Tank Capacity 30 lbs
    Water Heater Type Girard On Demand
    TV Info LR LED TV
    Awning Info 20' Electric with Adjustable Arms, Auto Dump, LED Lights
    Axle Count 3
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Shower Type Neo-Angled
    Electrical Service 50 amp

    Similar Floorplans

Fuzion Impact Edition Features:

Standard Features (2024)



PLEASE NOTE: Features and options separated by type below

---------------------------------------------------------

TRAVEL TRAILERS

Exterior

  • 10"/12" I-beams w/ frame welded tie downs and 100" wide body (Select Models)
  • 8" I-beams w/frame welded tie downs and 100" wide body (Select Models)
  • Aluminum constructed laminated fiberglass sidewalls
  • Large panoramic tinted safety glass windows w/ black framing
  • Dual-pane frameless windows (Optional) (Select Models)
  • Diamond plate rock guard on cap
  • 3/4 front cap (Select Models)
  • Norco cable driven slide system w/ manual backup
  • One-piece polypropylene heated underbelly (enclosed tanks and valves)
  • 7,000 lb. flipped Dexter® E-Z Lube axles w/ 12" x 2" brakes on every wheel (Select Models)
  • 4,400 lb. flipped Dexter® E-Z lube axles (Select Models)
  • 5,100 lb. flipped Dexter E-Z Lube axles (Select Models)
  • Leaf spring suspension system
  • 16" aluminum wheels w/ F-rated tires (Select Models)
  • 15" aluminum wheels w/ E-rated tires (Select Models)
  • Electric front and rear stabilizer jacks
  • 30” wide entry doors
  • Lighted pass-through storage
  • Battery disconnect
  • Onan 5500 watt gasoline generator (Optional) (Select Models)
  • Onan 4000 watt gasoline generator (Optional) (Select Models)
  • 94gal. fresh, 60 gal. gray, 30 gal. black (Select Models)
  • 60 gal. fresh, 60 gal. gray, 30 gal. black (Select Models)
  • Fuel station w/ 12V pump, 30-gal. tank, and static line
  • 50-AMP service w/ detachable marine power cord (Select Models)
  • 30-AMP service w/ detachable marine power cord (Select Models)
  • Exterior shower w/ hot and cold water
  • Electric awning w/adjustable arms, auto dump, and LED light strip

Interior

  • Fiberglass backed linoleum floor (carpet-free)
  • Extra tall slide height (select models)
  • Night shades
  • Designer upholstered window valances
  • Residential-style furniture w/ heated seats, LED lights, massage, and 110v/USB ports (Select Models)

Keystone Exclusives

  • Color-coded unified wiring standard
  • 4G LTE and Wi-Fi prep
  • Tuf-Lok™ thermoplastic duct joiners
  • KeyTV™ multisource signal controller
  • In-floor heating ducts
  • Tru-fit™ slide construction

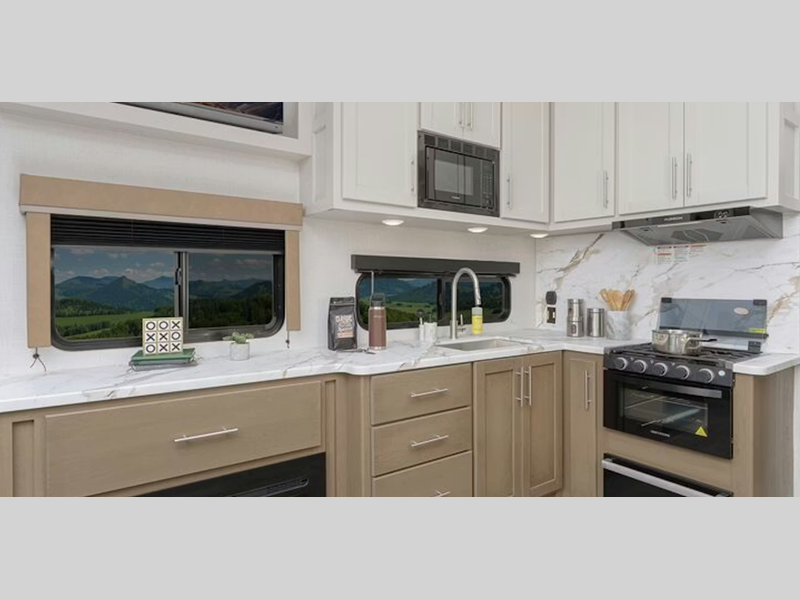

Kitchen

  • Hardwood cabinetry
  • Full-extension ball bearing drawer guides
  • Pressed countertops (Select Models)
  • Deep, single basin, stainless steel sink
  • High-rise faucet w/ pull-out sprayer
  • Swivel bar stools (select models)
  • Booth dinette (select models)

Appliances & Utilities

  • (2) 30 lb. LP tanks
  • Omni Chill™ 3/4 ton high efficiency A/C
  • 2nd ¾ ton A/C (Optional) (Select Models)
  • 35K BTU furnace
  • Girard On Demand Hot Water Heater
  • LED TV and Bluetooth® CD/DVD player w/ MP3 connection, 2 interior, and 2 exterior speakers (select models)
  • 10 cu. ft. 12V refrigerator
  • Microwave oven
  • Furrion® 3-burner gas range and stove w/ low profile hood vent
  • Recessed LED puck lighting throughout

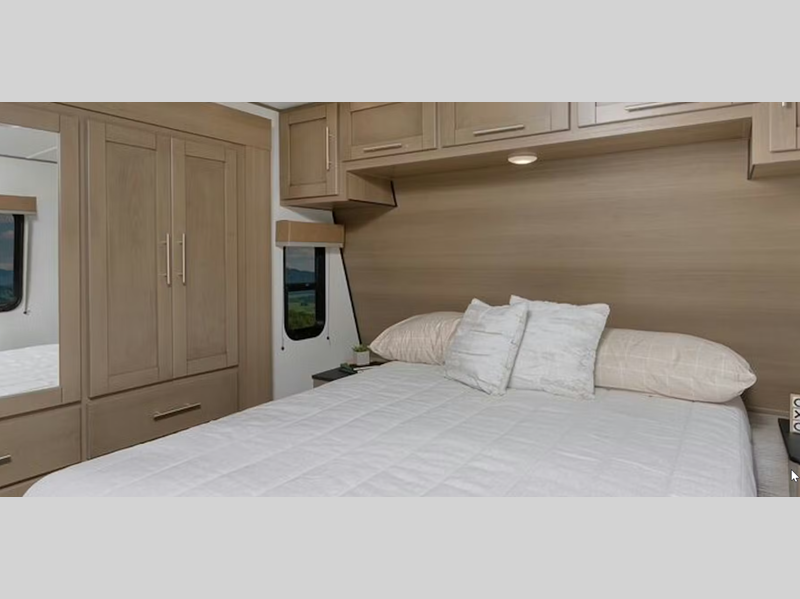

Bedroom

  • 60" x 80" residential queen-sized bed
  • Reading lights
  • Bedside outlets/USB
  • Under bed storage
  • TV hook-up

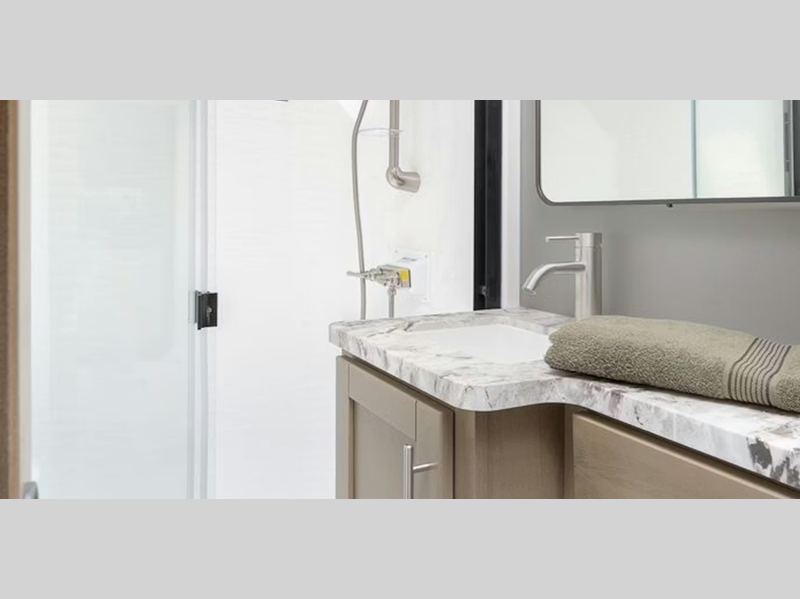

Bathroom

  • Pressed countertops
  • Skylight over tub (Select Models)
  • Porcelain base foot flush toilet

Safety

  • Tire Pressure Monitoring System on all tires w/ Display
  • Breakaway switch and safety chains
  • GFI receptacles
  • Carbon monoxide detector
  • Smoke detector
  • Propane gas leak detector
  • Fire extinguisher

Garage

  • Gas/oil resistant tuff-ply flooring (select models)
  • 5k interlock system w/ frame welded tie-downs
  • 8’ ramp door
  • Ducted A/C, ducted heat
  • TV prep (select models)
  • (2) metal ram air vents
  • Dual electric beds w/ collapsible roll-over sofa (select models)
  • HappiJac® bed system w/ table and upper bunk (select models) (optional on select models)
  • Flip up rollover sofas w/strutted upper bunk (select models)

Individual Options

  • Rear patio package

-----------------------------------------------------------------

FIFTH WHEELS

Exterior

  • 10"/12" I-beams w/ frame welded tie downs and 100" wide body
  • Rota-Flex™ pin box
  • Aerodynamic fiberglass front cap w/lights and improved turning radius (select models)
  • Aluminum constructed laminated fiberglass sidewalls
  • Large panoramic tinted safety glass windows w/ black framing
  • Dual-pane frameless windows (optional) (select models)
  • Fiberglass front cap w/ LED lights
  • Fully walkable roof
  • Collapsible roof ladder
  • Norco cable driven slide system w/ manual backup
  • One-piece polypropylene heated underbelly (enclosed tanks and valves)
  • 7,000 lb. flipped Dexter E-Z lube axles w/12" x 2" brakes on every wheel (select models)
  • Leaf spring suspension system
  • 16" aluminum wheels w/ G-rated tires
  • BaseCamp 6 point hydraulic Leveling
  • 30” wide entry doors
  • Lighted pass-through storage
  • Back-up camera/prep (select models)
  • Battery disconnect
  • Exterior convenience center (select models)
  • Generator prep
  • Onan 5500 watt gasoline generator (Optional)
  • 94 gal. fresh, 88 gal. gray, 44/88 gal. black (select models)
  • 94 gal. fresh, 60 gal., gray, 30 gal. black (select models)
  • Fuel station w/ 12V pump, 30-gal. tank, and static line
  • 50-AMP service w/ detachable marine power cord
  • Exterior shower w/ hot and cold water
  • Electric awning w/adjustable arms, auto dump, and LED light strip

Interior

  • Fiberglass backed linoleum floor (carpet-free)
  • Extra tall slide height
  • Night shades
  • Designer upholstered window valances
  • Residential-style furniture w/ heated seats, LED lights, massage, and 110v/USB ports (select models)
  • 5000 BTU electric fireplace (Select Models)
  • Hardwood Cabinetry

Keystone Exclusives

  • Color-coded unified wiring standard
  • 4G LTE and Wi-Fi prep
  • Tuf-Lok™ thermoplastic duct joiners
  • KeyTV™ multisource signal controller
  • In-floor heating ducts
  • Tru-fit™ slide construction

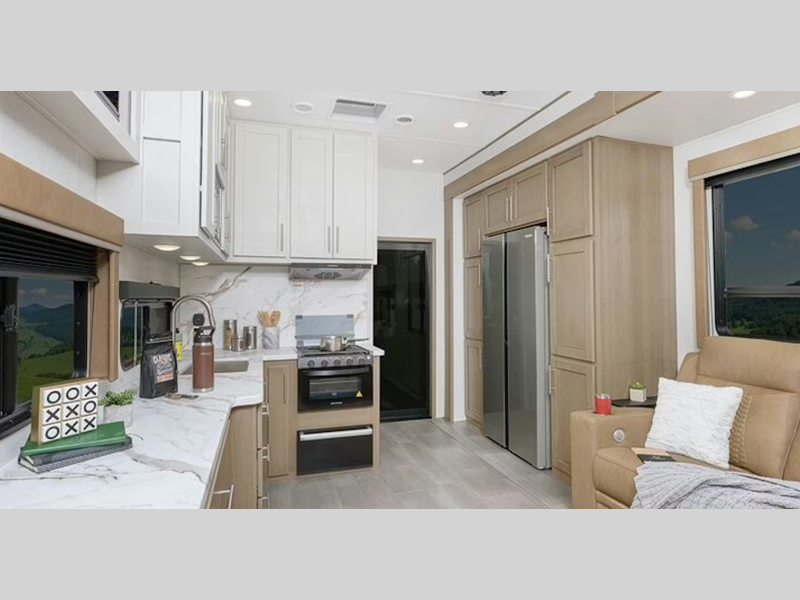

Kitchen

  • Full-extension ball bearing drawer guides
  • Pressed countertops
  • Deep, single basin, stainless steel sink
  • High-rise faucet w/ pull-out sprayer
  • Swivel bar stools (select models)
  • Booth Dinette (select models)

Appliances & Utilities

  • (2) 30 lb. LP tanks
  • Omni Chill™ 3/4 ton high efficiency A/C
  • 2nd ¾ ton A/C (Optional)
  • 35K BTU furnace
  • Girard On Demand Hot Water Heater
  • Smart TV and Bluetooth CD/DVD player w/MP3 connection, 2 interior, and two exterior speakers (select models)
  • LED TV and Bluetooth CD/DVD player w/MP3 connection, 2 interior, and two exterior speakers (select models)
  • 10 Cu. Ft. 12V refrigerator (select models)
  • 16 Cu. Ft. 12V refrigerator (select models)
  • Microwave oven
  • Furrion® 3-burner gas range and stove w/ low profile hood vent
  • Washer/dryer prep (select models)
  • Recessed LED puck lighting throughout

Bedroom

  • King bed suite w/ storage (select models)
  • 60" x 80" residential queen-sized bed (select models)
  • Reading lights
  • Bedside outlets/USB
  • Under bed storage
  • TV hook-up

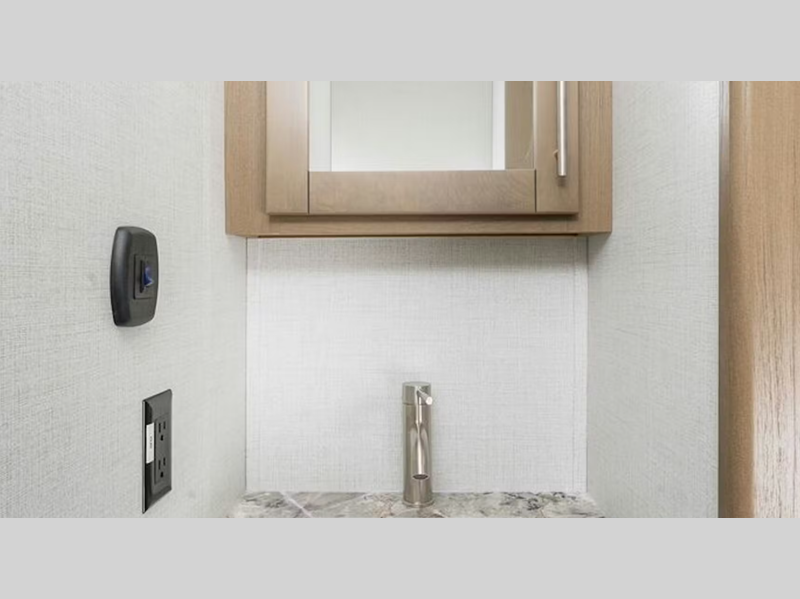

Bathroom

  • Pressed countertops
  • Oversized shower w/ skylight
  • Porcelain base foot flush toilet

Safety

  • Tire Pressure Monitoring System on all tires w/ Display
  • Breakaway switch and safety chains
  • GFI receptacles
  • Carbon monoxide detector
  • Smoke detector
  • Propane gas leak detector
  • Fire extinguisher

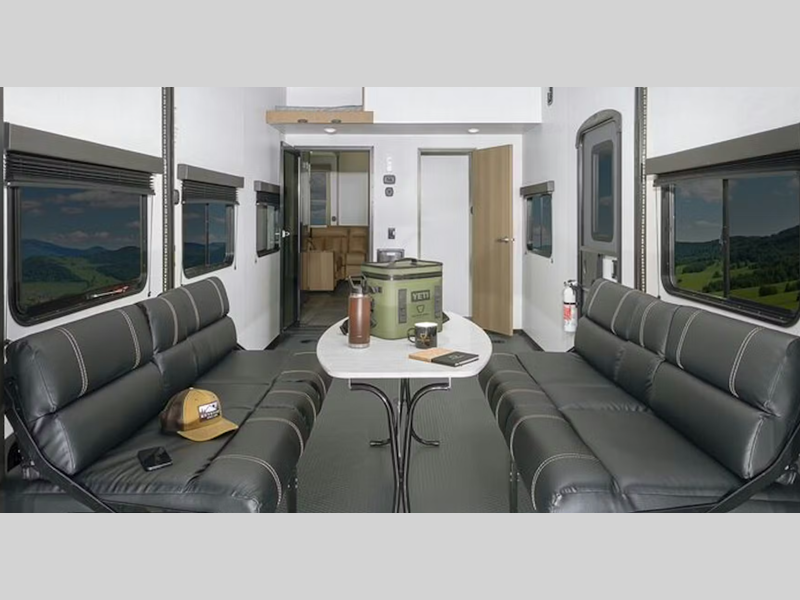

Garage

  • Gas/oil resistant tuff-ply flooring
  • 5k interlock system w/ frame welded tie-downs
  • 8’ ramp door
  • Half bath (Select Models)
  • Ducted A/C, ducted heat
  • (2) metal ram air vents
  • Dual electric beds w/ collapsible roll-over sofa (select models) (optional on select models)
  • Sliding rear patio door (Optional)

SolarFlex

  • SolarFlex™ Protect 220
  • SolarFlex Discover 400i (Optional)
  • SolarFlex Outlast 660i-L (Optional) (Select Models)

Individual Options

  • Rear patio package (optional)

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.



















Manu-Facts:

Keystone RV

When Cole Davis founded Keystone RV in 1996 his vision was clear: to build a quality RVs loaded with features, and provided exceptional value to owners. To accomplish his goal, Cole would recruit and build a strong team, focus on keeping overhead low, and empower the people closest to the customer to make decisions.



Today, Keystone RV Company is the #1 manufacturer of towable RV’s in North America with more than a million owners, 5,000 team members and over a million square feet of manufacturing in Goshen, Indiana and Pendleton, Oregon. Although a lot has changed, Cole’s wisdom still guides us. Our goal is to surprise and delight our owners at each and every touchpoint, providing them with the information, quality, and assurance they need to move in the direction of their dreams – to Live It Out™
